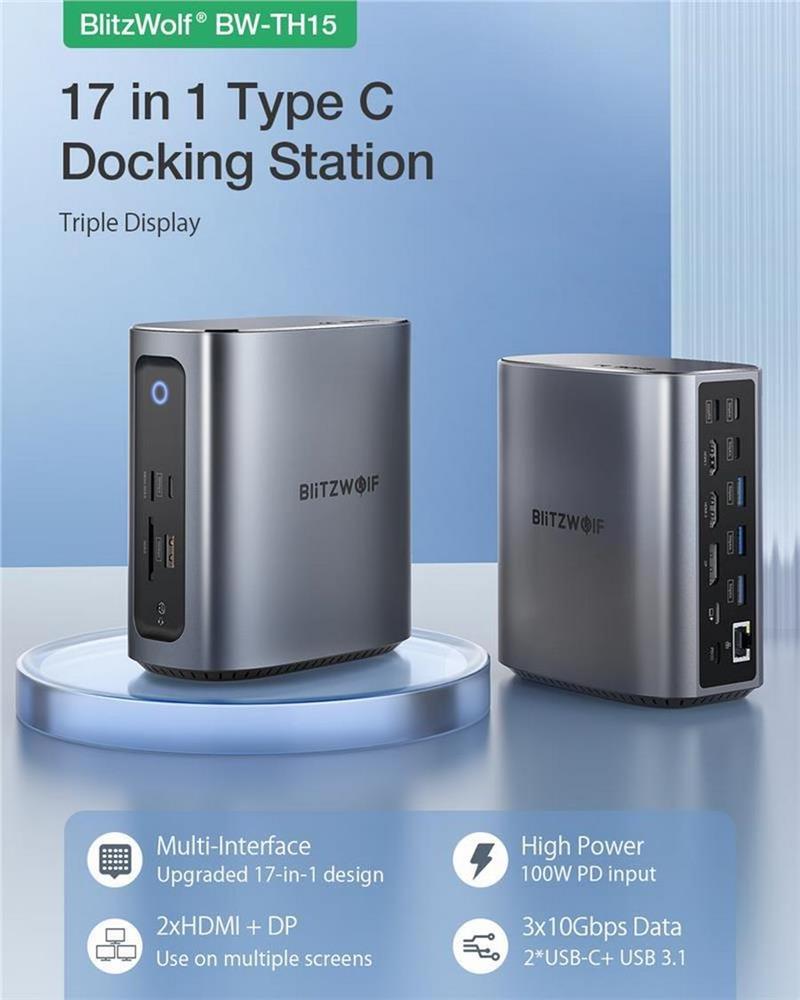

BlitzWolf BW-TH15 17-in-1 USB C Docking Station with DP Dual HDMI 4K/60HZ Triple Display USB3.0 USB3.2 10Gbps Date Transmission RJ45 Ethernet Port PD 100W Fast Charge
1.Because the docking station itself needs about 35W of power supply, in order to make the device work more stably, it is recommended to use a PD charger of more than 100W when using a notebook.
2.PD charger separately need to buy by yourself.
|Product||17 in 1 Docking Station|
|Type C PD Protocol||20V|
|Interfaces||2 * HDMI??1 * DP|
|4 * USB-C|
|3 * USB 3.0|
|1 * USB 3.1|
|1 * USB-C 3.2 Gen2 for HOST|
|1 * USB-C PD|
|1 * RJ45|
|1 * Micro SD 4.0|
|1 * SD 4.0|
|1 * 3.5mm Audio|
|HDMI 1 Interface Resolution||4K@60Hz DP 1.4|
|HDM1 2 Interface Resolution||4K@60Hz DP 1.4|
|DP Interface Resolution||4K@60Hz|
|2 * USB-C Data Transfer Speed||10Gbps|
|2 * USB-C Data Transfer Speed||5Gbps|
|3 * USB 3.0 Data Transfer Speed||5Gbps|
|USB 3.1 Data Transfer Speed||10Gbps|
|USB-C 3.2 Gen2 for HOST||Connect to host device,Offers 65W charging|
|USB-C PD Fast Charge||100W??65W is for the main control interface, and 35W is for the docking station itself.)|

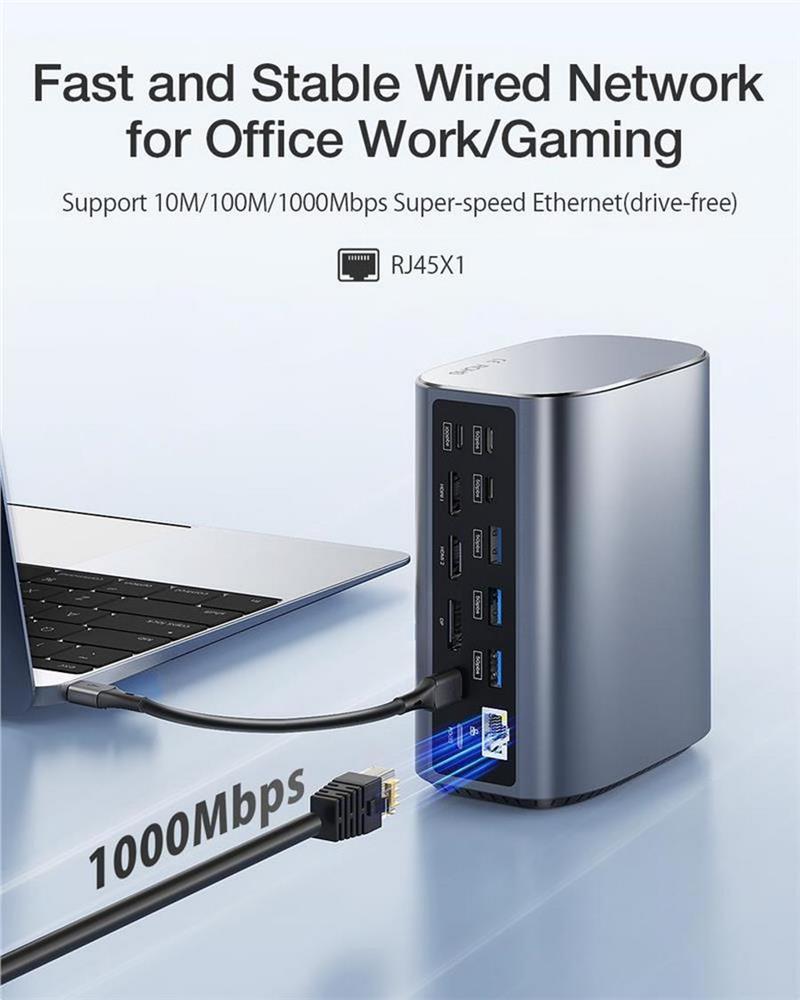

|RJ45 Network Transmission||1000Mbps|
|SD / Micro SD 4.0||Max up to 400MB/s|
|3.5mm Audio||Audio and Microphone|

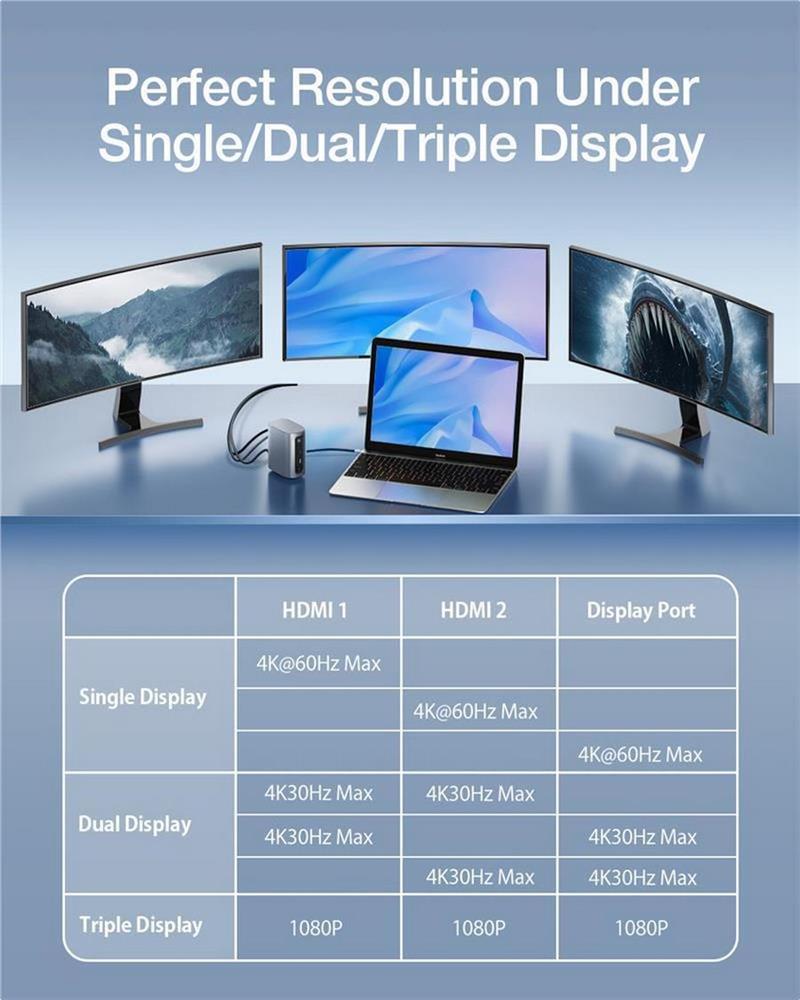

The maximum resolution output by the docking station depends on whether the USB-C interface of the laptop supports DisplayPort 1.2, DisplayPort 1.4 or DisplayPort 1.4 with DSC (Display Stream Compression) function.
2.The USB-C interface of the computer must support the DisplayPort 1.4 function with DSC.
The video expansion function of this product is realized by DisplayPort Alternate Mode (ie DP Alt-Mode) technology. If the video cannot be extended to an external display, please check whether the USB-C port of the laptop computer supports DP Alt-Mode. If the USB-C interface compatible with Thunderbolt 3 or Thunderbolt 4, then the interface is also compatible with DP Alt-Mode.

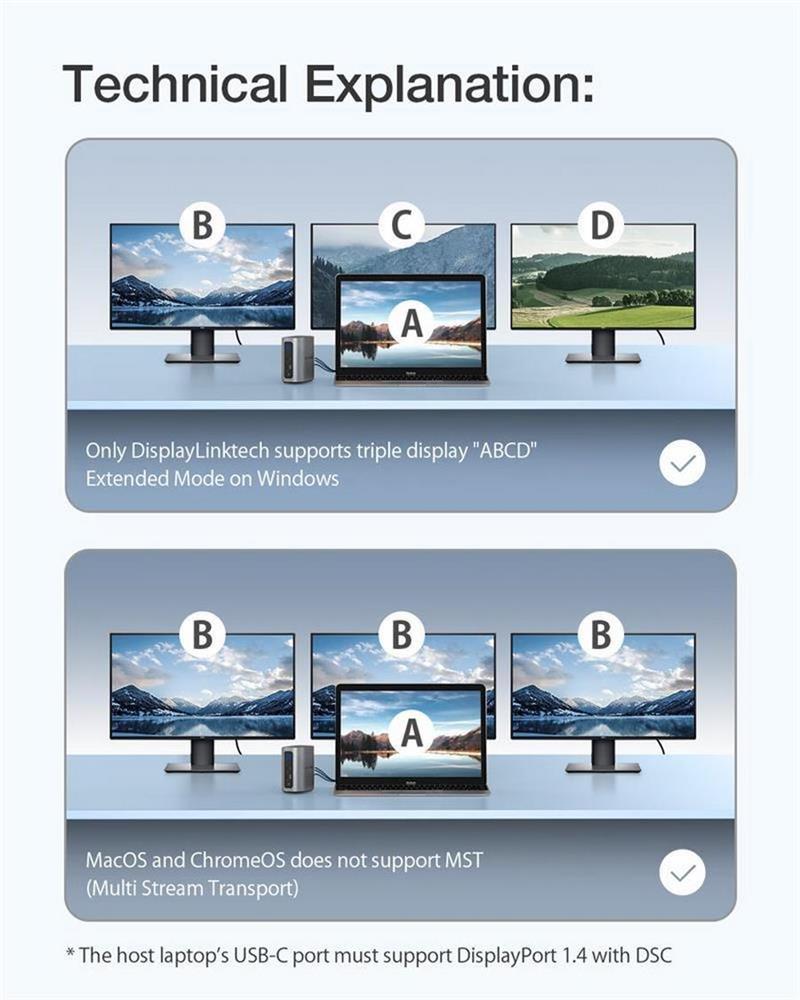

3.MST (Multi Stream Transport) function, that is, the description of multi-screen display:
Laptops with Windows system can use the MST (Multi Stream Transport) function through this docking station, that is, multiple screens with different displays.
1 x BW-TH15 17 in 1 Docking Station
1 x Date Cable
1 x Power Cable (
PD charger separately need to buy by yourself)
1 x User Manual
1.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
2.Please allow 1-2cm measuring deviation due to manual measurement.
